Lighting for a toboggan run

Lighting Recreation sites
Home 5 References 5 Lighting for a toboggan run

 Project features

  • TOTAL POWER: 10 kVA
  • TRANSPORT VOLTAGE: 950 V single phase
  • NETWORK LENGTH: 3500 meters
  • LOCATION: France
  • YEAR: 2013

PROJECT OBJECTIVES

Provide the electrical supply for the lighting of a luge track consisting of 15 poles equipped with two 70w metal halide lamps each. Average distance of 234 meters between the poles, for a total length of 3500 meters.

CUSTOMER NEEDS

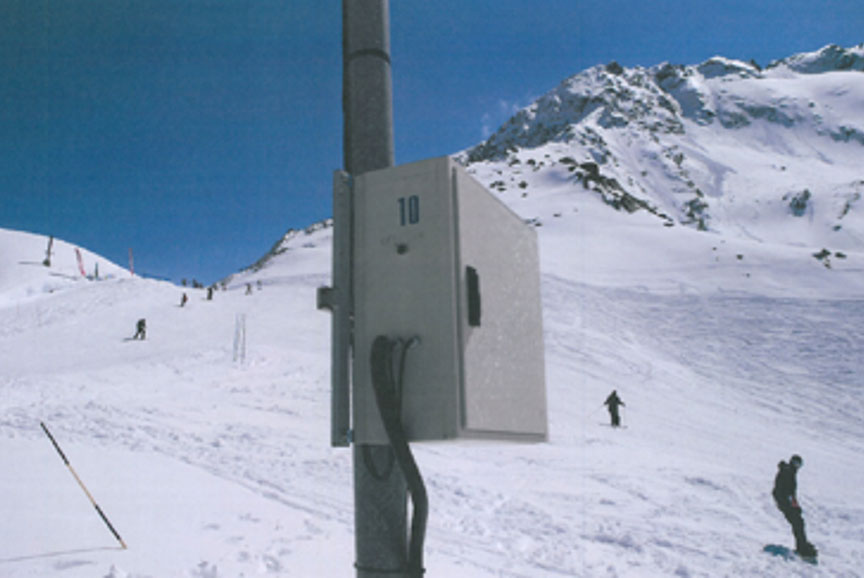

Respond to the strong constraint of an installation in high mountains, at an altitude between 2300 and 2950 meters. Minimize the cable cross-section as much as possible to facilitate implementation (difficulty of access).

CUSTOMER NAME

Entreprise BARBIER service

OUR SOLUTIONS IMPLEMENTED

Transport electric energy at 950 V from a step-up substation. This substation powers supply VOLTAMAX transformers, transformers installed in a cabinet with two VOLTAMAX per cabinet. Cable section 950 V U1000R2V 2x16mm², without low voltage sub-network.

MATERIAL USED

  • One PTS95 10 kVA step-up substation 230 V / 950 V, aluminium substation, indoor type installed in a room.

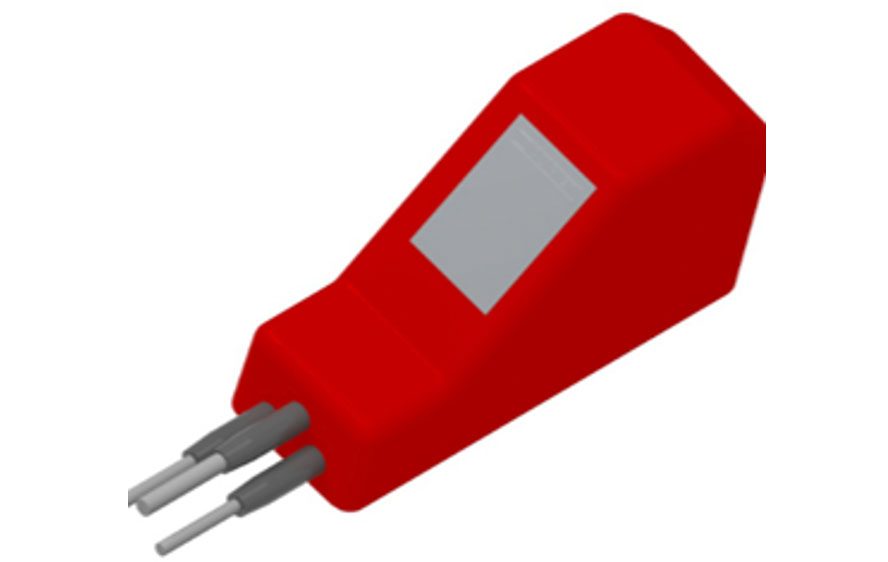

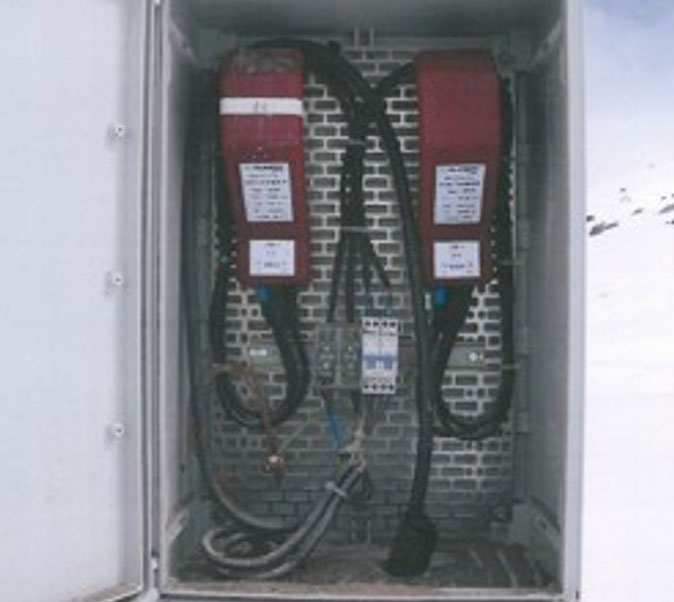

  • 30 VOLTAMAX 150M 950 V / 230 V transformers, VOLTAMAX installed in a cabinet

CUSTOMER BENEFITS

950 V network and low cable cross-section

IP68 watertight transformers

Resists harsh weather conditions
