Project features

  • TOTAL POWER: 210 kVA
  • TRANSPORT VOLTAGE:3200 V
  • NETWORK LENGTH: between 260 & 2350 meters
  • LOCATION: France
  • YEAR: 2024

PROJECT OBJECTIVES

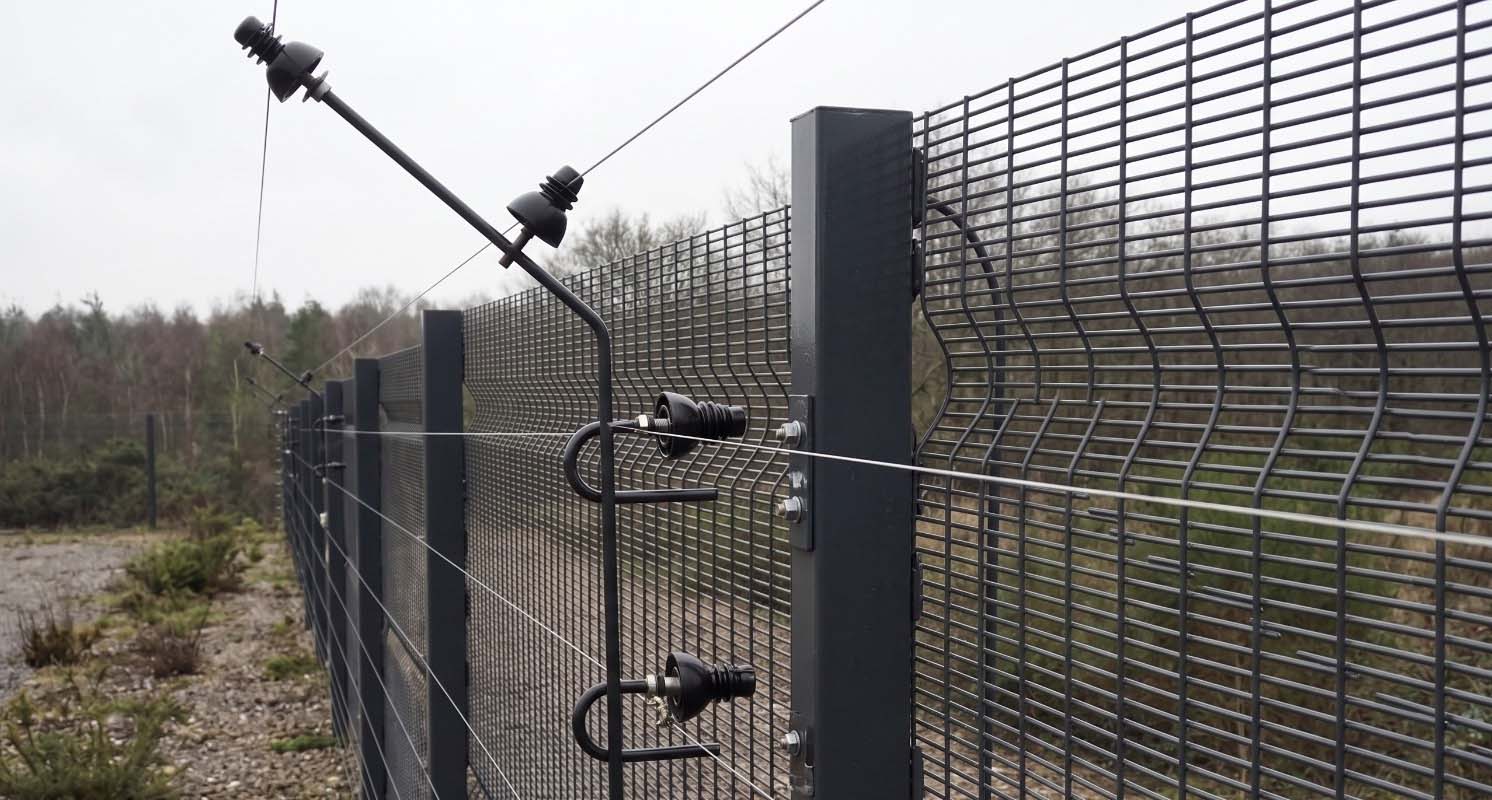

Electrify 77 km of fencing, divided into different zones of lengths ranging from 260 to 2,350 meters. Power supply areas considered at risk, such as runway thresholds and aircraft parking areas.

CUSTOMER NEEDS

Using several low-voltage sources distributed across the platform, power supply remote LV cabinet to monitor and electrify the fences. Installing several substations enhances site security.

CUSTOMER NAME

Paris Airport

OUR SOLUTIONS IMPLEMENTED

Step-up the voltage to 3200 V and power supply step-down transformers. A transformer power supply one low-voltage cabinet, one cabinet every 300 meters. 3200 V cable with a cross-section of 6+6 mm².

MATERIAL USED

7 PTS32 230 V / 3200 V 16 kVA outdoor step-up substations
4 PTS32 230 V / 3200 V 25 kVA outdoor step-up substations
43 MODULO BI 2 kVA 3200 V / 230 V watertight transformers

CUSTOMER BENEFITS

Secure the installation, buried solution

Small cross section cable, saves resources

Allows network extensions while preserving the created networks
